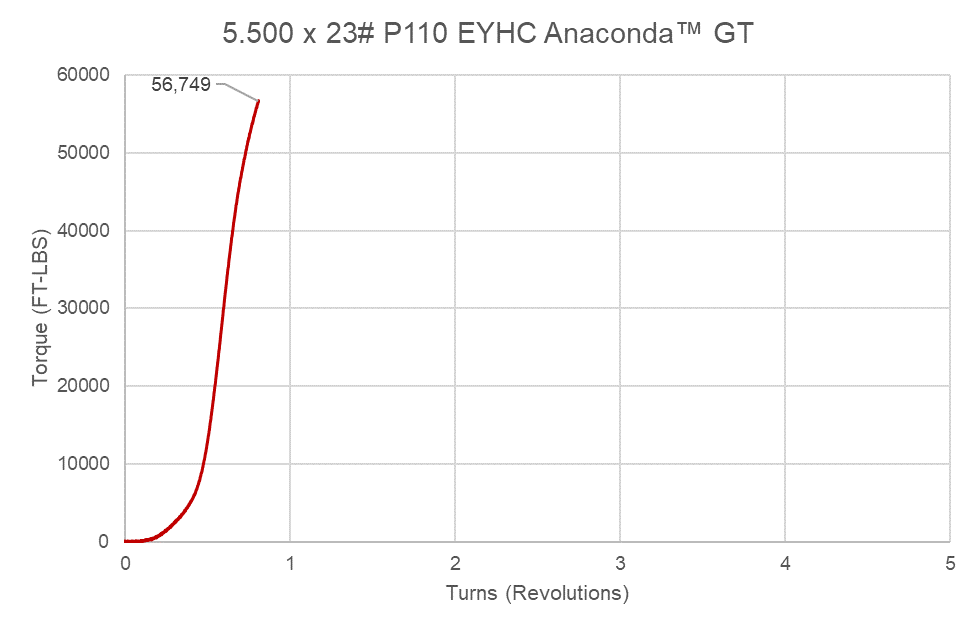

Anaconda™ GT is the next generation of premium, semiflush connections. Its seat-optimized seal delivers premium sealability with burst and collapse ratings equal to pipe body. The Constrictor™ thread form provides outstanding operating torque without the need for a traditional shoulder, minimizing the risk of an ID restriction. Negative load and stab flanks lock the pin and box together for performance under combined loading. A box OD only 3-5% larger than pipe body provides clearance when its required. Anaconda™ GT is ready for the most demanding applications. Its been field proven in high pressure gas wells with as many as 100 fracture stages, served in sour environments, and given operators the torsional capacity to TD tortuous wells with long laterals. Stepped crests and low pitch allow for makeup is as few as 5 turns. Makeup is fast and consistent, allowing operators to save valuable rig time. Anaconda™ GT was built to tackle both the technical and economic challenges facing the oil and gas operators of this generation and the next.
All material contained in this brochure is for general information only. This material should not, therefore, be used or relied upon for any specific application without independent competent professional examination and verification of its accuracy, suitability and applicability. Fermata Technologies, LLC does not assume any responsibility or liability for any loss, damage, injury resulting from the use of information and data herein.
Reach out to your Fermata™ representative for more information
